Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471
  • Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471
  • Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471
  • Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471
  • Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471
  • Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471
  • Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471

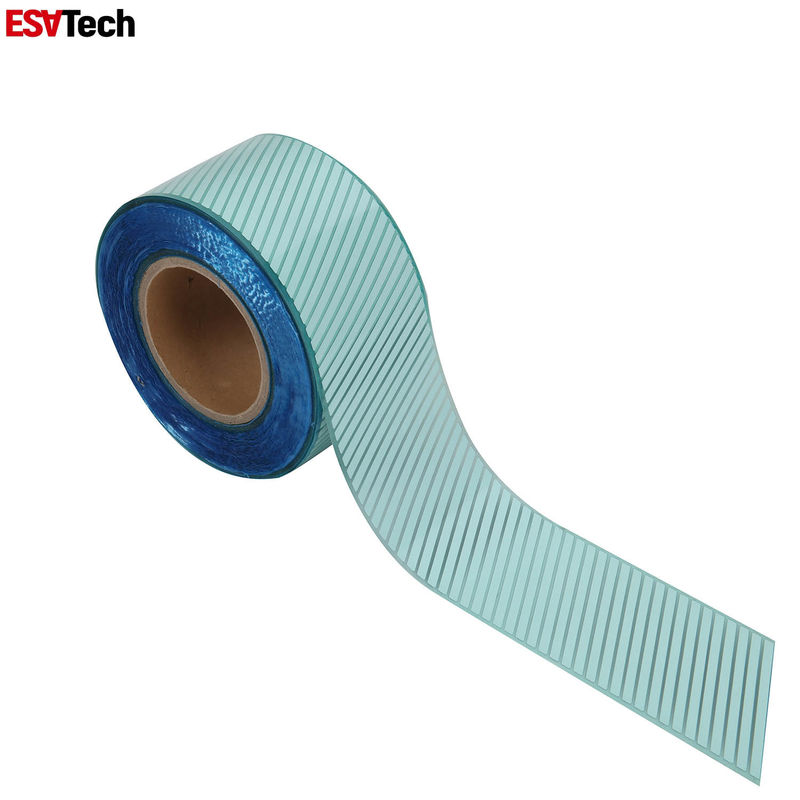

Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471

Place of Origin Shanghai
Brand Name ESATECH
Certification OEKO-TEX100, ENISO20471,ANSI,BV,UL,EN533
Product Details
Name:
Reflective Tape For Raincoat
Backing Fabric:
Polyester
Color:
Silver Or Custom
Feature:
Elastic
Sample:
Freely Provided
Logo:
Custom Logo
MOQ:
1 ROLL
Width:
5cm Or Customer's Request
Reflective Coefficient:
>500cdl
Certification:
EN471 Class2 OEKO-TEX100 Class2
Home Wash Cycles:
60 Home Wash Cycles At 30°C
Size:
5CM*100M
Heat Transfer:
90-100°C, 10-12 Seconds, 30-40psi
Usage:
Raincoat, Or TPU Texture Clothing
High Light:

iridescent heat transfer film

,

polyurethane heat transfer film

,

Reflective Heat Transfer Film EN20471

Product Description

Product Description



EN20471 segmented heat transfer reflective film retro reflex tape for hi vis t shirt
Application:
1. For "Sew on", "High frequence press", etc on any type of safety garment,
Reflective vest, lifesaving clothes, bags, sportswear, etc...
2. Also can be silk-screen printed.

3. Heat applied on garment like safety vest, motorcycle/bicycle vest, safety workwear, bags and tents

Item
B2110 series
Description
Silver high visible reflective heat transfer film
Retro-reflectivity
300-480cd/lux.m2
ISO6330:2012 washing cycles at 60℃
50 cycles
ISO3175-2:2010 dry cleaning at 30℃
10 cycles
Certificate
EN471, EN 469, ANSI/ISEA 107, OEKOTEX 100
Application
Heat transfer
MOQ
2000mters
Lead Time
7-10 days
FOB port
Shanghai
Payment Item
T.T, LC, credit card, west Union
Forms of trade
FOB, CNF, CIF



Reflective Material - Colorized Reflective Heat Transfer Film/Vinyl is designed as an plotter (electronic) cuttable transfer film for use on fashion garments, high-visibility clothings such as T-shirt, consumer garments and accessories,…… It can be used to create reflective graphic transfers that are easy to cut, weed, and can be laminated in one step.
Colorized Reflective Heat Transfer Film/Vinyl will help designers to expand their imagination, creativity and bring more visibility and safety to wearers. Fashion designers all around the world can not miss reflective heat transfer film for their collections.





Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471 0

Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471 1



Colors

Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471 2



Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471 3

Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471 4

Working Process



Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471 5

Heat Transfer (Heat Lamination) Guidelines

We recommend to follow below info to set up the settings on laminating equipments.

* Lamination Temperature: 130-150 °C
* Dwell Time (seconds): 10-20
* Line Pressure Firm: 30-40 psi

Above settings should be adjusted according to the pre-production testing results.



Certifications

Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471 6

Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471 7Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471 8Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471 9Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471 10

Package



Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471 11

Exhibition

Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471 12



Polyurethane Iridescent Reflective Heat Transfer Film Retro Reflex Tape Hi Vis Segmented EN20471 13



Our Advantage

1.MOQ: depends on different types of products (Sample production will be available)

2. Packaging: own packaging factory, off free design for packaging box

3.Low MOQ: It can meet your demand

4.OEM Accepted:We provide OEM service. We can produce according to your requirement.

5.Professional service: We treat all of my clients as our long term business partners

6.Stable Quality: We have strict quality control system.



FAQ

You are factory or not ? factory with no doubt, we have our own factory and focus on reflective material for more than 20 years in China. welcome to visit our company.
Where is your factory? can it be visited? Our factory is located in Shanghai,please come to our factory for a visit and make friends with each other no mater how the business goes on.
how does the sample getted by you? after the design confirmed,we will make the sample at first time,normally 3-5 days,and then we will send it to you,we will make the sample for free,but the sample express cost should be paid by your company.
Can you make color and designas customer request? Yes, if our running design not meet customer request, we can make design as your sample.
Do you accept small order? Yes,we do. If your order is less than our MOQ, we can arrange special for you.
How does your factory do regarding quality control? do not be worried quality is priority.,our product has been tested and passed the quality serious requirement from USA and Europe
What is the reflective coefficient for the Reflective Material can pass? Our Reflective Material can pass the EN13356 ,en471 class 2 standards for the reflective coefficient.
